Economical reducer
Type:PLQE
PLQE series

◆ Optimized output bearing

◆ Simple installation

◆ Low calorific value

  • Economical reducer
  • Economical reducer
  • Economical reducer
  • Economical reducer

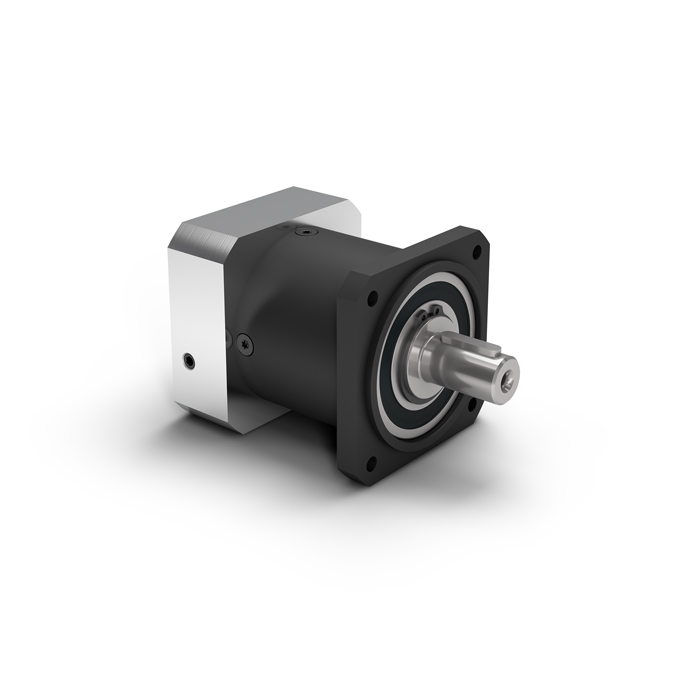

This PLQE is simple in structure and powerful in function. It can be directly connected to the equipment without intermediate flange. The deep groove ball bearing with larger size at the output end can withstand higher radial force and axial force. At the same time, it only generates very low heat, and can operate safely and reliably even in the production cycle with high requirements.

characteristic

The heat release is still very low at high speed

Optimized output bearing

Square output flange

High dynamics in multi axis systems

Can be installed anywhere

Precise engagement

Reducer parameters PLQE060 PLQE080 PLQE120 P
transmission ratio 3, 4, 5, 7, 8, 10 one
9, 12, 15, 16, 20, 25, 32, 40, 64 two
60, 80, 100, 120, 160, 200, 256, 320, 512 three
service life h thirty
Efficiency at full load % 98/97/92
Minimum operating temperature/maximum operating temperature -25/90
Degree of protection IP54
Standard lubrication Grease (lifetime lubrication)
Food grade lubrication Grease (lifetime lubrication)
Low temperature lubrication Grease (lifetime lubrication)
Installation position arbitrarily
Standard return clearance arcmin <10-<15 <7-<11 <7-<11
Torsional stiffness Nm/arcmin 2.8-4.1 8.5-13.4 14.0-19.0
Weight of reducer kg 1.1-1.5 2.7-4.0 6.4-10.1
Standard box surface Box: steel - oxidized after heat treatment (black)
Running noise dB/(A) fifty-eight sixty sixty-five
Maximum bending moment based on reducer input flange
Nm three eight sixteen


Rated output torque

PLQE060 PLQE080 PLQE120 I P
twenty-eight eighty-five one hundred and fifteen three one
thirty-eight one hundred and fifteen one hundred and fifty-five four
forty one hundred and ten one hundred and ninety-five five
twenty-five sixty-five one hundred and thirty-five seven
eighteen fifty one hundred and twenty eight
fifteen thirty-eight ninety-five ten
forty-four one hundred and thirty two hundred and ten nine two
forty-four one hundred and twenty two hundred and sixty twelve
forty-four one hundred and ten two hundred and thirty fifteen
forty-four one hundred and twenty two hundred and sixty
sixteen
forty-four one hundred and twenty two hundred and sixty twenty
forty one hundred and ten two hundred and thirty twenty-five
forty-four one hundred and twenty two hundred and sixty thirty-two
forty one hundred and ten two hundred and thirty forty
eighteen fifty one hundred and twenty sixty-four
forty-four one hundred and ten two hundred and sixty sixty three
forty-four one hundred and twenty two hundred and sixty eighty
forty-four one hundred and twenty two hundred and sixty one hundred
forty-four one hundred and ten two hundred and thirty one hundred and twenty
forty-four one hundred and twenty two hundred and sixty one hundred and sixty
forty one hundred and ten two hundred and thirty two hundred
forty-four one hundred and twenty two hundred and sixty two hundred and fifty-six
forty one hundred and ten two hundred and thirty three hundred and twenty
eighteen fifty one hundred and twenty five hundred and twelve


Output shaft load

Output shaft load PLQE060 PLQE080 PLQE120

Radial force of 20000h/radial force of 30000h

N 700-900 1700-2050 2400-2950
Axial force of 20000h/axial force of 30000h N 800-1000 2000-2500 2100-2500
20000 h tilting moment Nm thirty-seven one hundred and two two hundred and thirty-two


Geometric dimensions

PLQE060 PLQE080 PLQE120 Grade
Output shaft diameter mm sixteen
twenty twenty-five
Diameter of output retaining lug mm sixty eighty one hundred and ten
Box diameter mm sixty eighty one hundred and fifteen
OUTSIDE OF OUTPUT FLANGE mm seventy ninety one hundred and fifteen
Total length mm
one hundred and eleven one hundred and forty-five two hundred and one point five one
one hundred and twenty-three point five one hundred and sixty-two point five two hundred and twenty-nine point five
two
one hundred and thirty-six one hundred and eighty two hundred and fifty-seven three
Output shaft length mm thirty-two forty fifty-five
